( Raw, Beadblast & Stonewash Finish Variants )
519A Nichia - 4000K Color
Includes A 18350 Lithium Battery & 1A Quick Charger Too!
The Reylight Triple-LED Custom Flashlight
A pocket-sized powerhouse designed for ultimate versatility, the Reylight features a premium triple-Nichia 219B LED setup paired with a Carclo TIR optic. This combination delivers up to 2,000 lumens of beautifully tinted, ultra-wide flood light—perfect for short-range and up-close illumination.
Compact & Modular Design
- Pocket to Full-Sized: Ships in an ultra-compact 18350 configuration (82 mm / 3.23 in, 154g / 5.43 oz with battery).
- Tough & Lightweight: Precision machined with a 25 mm / 0.98 in head diameter and a lightweight 128g (4.51 oz) bare weight.
- Zero-Drain Lockout: Features a true mechanical tail switch that consumes zero standby energy, making physical lockouts unnecessary.
Performance & Power
-
Max Output: Blasts up to 2,000 lumens on Turbo using high-drain cells, gracefully tapering down after a 60-second safety timer to manage heat.
-
Low-Voltage Protection: Built-in safety driver automatically shuts the light off at 2.9V to protect your batteries.
-
Current Draw (Measured at Tail): Moon (0.08A) | Low (0.19A) | Medium (1.0A) | Turbo (4.6A).
Dual-Layer User Interface
The mechanical switch uses simple clicks for power and intuitive half-clicks to navigate modes. Includes Mode Memory(saves your last mode after 1 second of use) and zero noticeable PWM flicker.

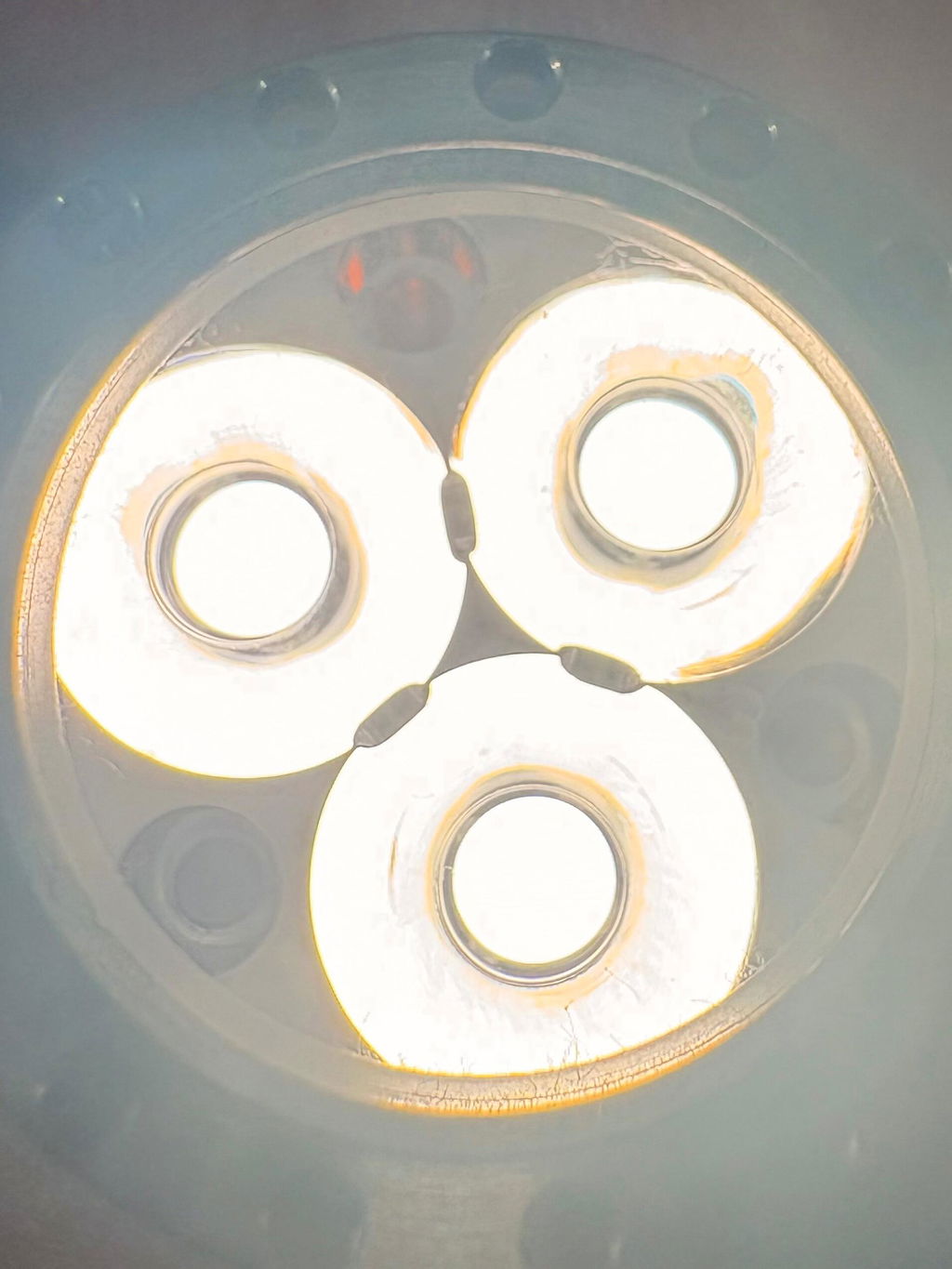

Triple Nichia 519a-4000K LED
Group1: (Moonlight)-2%-20%-100% ( Default)
Group2: (ML)-10%-40%-100%
Group3: (ML)-2%-10%-50%
Group4: (ML)-50%-100%-strobe-SOS
Programming guide
- ToEnter Configuration Mode:
-From ON, half-click/tap the tail switch 8+ times until it starts to flash.
(When the configuration mode is entered, the light will start to blink once, then a quick flash, blink twice, then a quick flash, blink three times, then a quick flash, blink four times, then a quick flash, blink five times, then a quick flash. This sequence continues twice if a selection is not chosen)
*The number of blinks indicates the configuration option number to be changed.
* Half-click/tap the tail switch during any quick flashes following the blinks to select the configuration option.
-Here are the configuration options:
- Mode group selection
(After entering this menu, you can see it blink 4 times. The number of blinks indicates the number of mode groups)
The 1st blink --------- Group1: (Moonlight)-2%-20%-100%
The 2nd blink -------- Group2: (Moonlight)-10%-40%-100%
The 3rd blink -------- Group3: (Moonlight)-2%-10%-50%
The 4th blink -------- Group4: (Moonlight)-50%-100%-strobe-SOS
*Half-click/tap the tail switch during any blinks to select the mode group.
*After selecting the mode group, you can half-click/tap to select the brightness mode.
- Memory mode on-off toggle (default off)
To turn memory mode on, half-click/tap the tail switch during the quick flash after the second blink.
*To turn off the memory mode, reenter the configuration mode and repeat the instruction above.
- Moonlight mode off-on toggle (default on)
To turn the moonlight off, half-click/tap the tail switch during the quick flash after the third blink.
*Repeat to turn the moonlight on.
- Mode order toggle (default LMH)
To change the mode order from Low Medium High to High Medium Low, half-click/tap the tail switch during the quick flash after the fourth blink.
*Repeat to reverse the order.
For example, the default mode order of group 1 is (Moonlight)-2%-20%-100%, if you change the mode group to HML, the mode ORDER of group 1 will be (Moonlight)-100%-20%-2%
- Factory reset
Half-click/tap the tail switch during the quick flash after the fifth blink to reset all options to their original states.
Customer Reviews
Awesome flashlight works well, but not much difference in finishes study all photos before you buy.
I received my stonewashed Reylight today, and I'm very happy with it. It's definitely not a primary EDC light, but it is a great backup light. First of all, I really like the moonlight mode, and I would like to see it on more pocket-carry lights. Streamlight Stylus Pro is my primary EDC, but with 100 lumens, I'm always holding it in my fist when I go in our bedroom, so I don't wake up my wife. A moonlight mode would be very useful.
And the turbo mode illuminates my whole backyard, as you can see in the photo. The back corner of the fence you see is 120 feet from where I'm standing, and the light reaches beyond that point.
Although I do like titanium, I'm not a fan of shiny finishes, so I love this stonewashed finish. It is a great compliment to this metal, and I would choose it every time it is offered.
If this was the only light I had in an emergency, I would be happy with it. The turbo is great for orientation, and the lower modes would be great for navigating my path. I recommend this light for any backup kit, but buy an extra battery. Two is one, and one is none, and your kit is only as good as your backup gear.
I'm not normally a fan of these duck bill style pocket clips. The clip itself feels good when you're holding the light. It kinda helps keep you from dropping it. I have several 18350 size flashlights, this one feels best in hand. The light it casts is gorgeous. Warm and floody.
I am always intrigued with the function and technology, when CC Sends me an alert showcasing new products. I LOVE IT!
